Contact

Mackenzie, Andrew
Andrew Mackenzie
Director
Phone: +49 351 4646-5900
Fax: +49 351 4646-5902
König, Markus
Markus König
Post-doctoral research scientist
Phone: +49 351 4646-3215
Fax: +49 351 4646-3232


Research groups

Interacting electron physics

Andy Mackenzie (Group Leader & Director)
Markus König (Institute Research Fellow and Head, Clean Room)
Alexander Steppke (Institute Research Fellow, joint with Hicks group)
Pallavi Kushwaha (Post-doctoral Research Scientist, joint with Geibel group)
Dan Sun (Post-doctoral Research Scientist, joint with Brando group)
Ulrike Stockert (Post-doctoral Research Scientist)
Sebastian Seifert (Clean Room Technician)
Renate Hempel-Weber (Clean Room Deputy Technician)
Mark Barber (graduate student, joint with Hicks group)
Nabhanila Nandi (graduate student, joint with Hicks group)
Maja Bachmann (graduate student, joint with Moll group)
Jack Bartlett (graduate student, joint with Hicks group)
Veronika Sunko (graduate student, joint with King group, University of St Andrews)
You-Sheng Li (graduate student, joint with Hicks and Nicklas groups)

Interacting electron mesoscopics

While strongly correlated systems in general are being studied quite extensively, relatively little work has been done to explore the mesoscopic regime in which one or more sample dimensions are reduced to be the same as, or smaller than, characteristic length scales of the states being studied. Examples of these scales include the mean free path in metals, the coherence length and penetration depth in superconductors, and characteristic domain dimensions in many forms of exotic order. For such studies, extremely high purity materials are paramount. Optimising the conditions for high purity thin film growth of complex materials can be difficult and time-consuming, so our goal is to begin with high purity single crystals and develop techniques for preparing micron-sized samples from them. To this end, we have built a dedicated clean room and installed - among other equipment - an electron beam lithography instrument (Raith150TWO) and a focused-ion-beam/scanning-electron microscope dual-beam system (FEI Helios Nanolab G3).

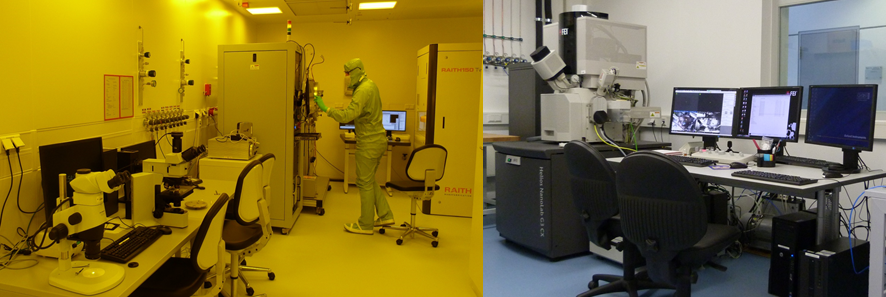

Figure 1: The clean room (left) and the Focused Ion Beam system (right). Zoom Image
Figure 1: The clean room (left) and the Focused Ion Beam system (right).

The available techniques enable us to customise the design of our samples. Thus, the relevant questions can be addressed directly and in an optimised geometry.

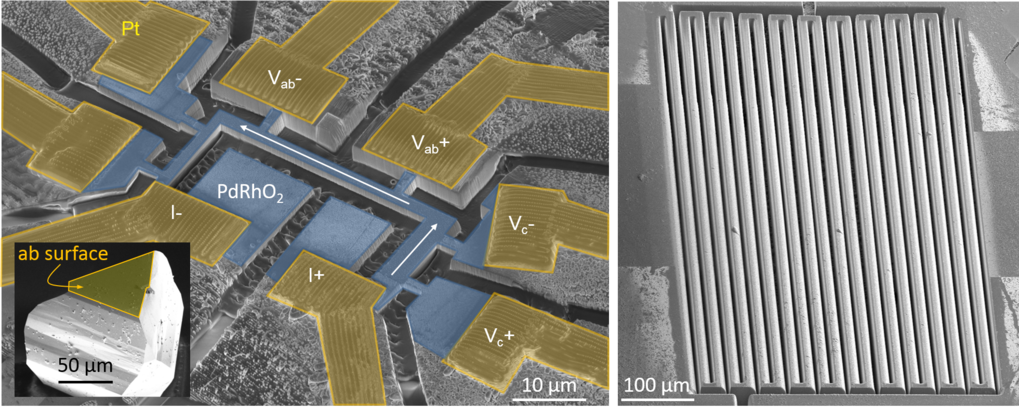

Figure 2: (left) PdRh0<sub>2</sub> microstructure (blue) with precise alignment to the crystal axes extracted and prepared from a macroscopic single crystal (inset) of the delafossite material. (right) Long narrow wire (L x W ≈ 18 mm x 10 µm) fabricated from an YbRh<sub>2</sub>Si<sub>2</sub> crystal. Zoom Image
Figure 2: (left) PdRh02 microstructure (blue) with precise alignment to the crystal axes extracted and prepared from a macroscopic single crystal (inset) of the delafossite material. (right) Long narrow wire (L x W ≈ 18 mm x 10 µm) fabricated from an YbRh2Si2 crystal. [less]

Thermodynamic and transport measurements on interacting electron systems

Although thermodynamic and thermal transport measurements are well-established techniques, they remain vitally important in the study of modern materials. This is particularly the case when interacting electrons form subtle new low temperature phases, or cause breakdowns from the standard Fermi liquid picture of metals.  We concentrate on making high-resolution measurements of the magneto-caloric effect, specific heat, thermopower, thermal conductivity and thermal Hall effect in different thermal regimes, from dilution refrigerators at 20 mK and below to 4He cryostats working at much higher temperatures. Current projects of interest are phase formation in Sr3Ru2O7, magnetothermal transport in Weyl semimetals and the study of quasi-1D materials which are postulated to show Luttinger liquid behavior.  A technical goal is to merge the two main activities of the group, and extend our capabilities for thermal measurement to the micro- and mesoscopic regimes.

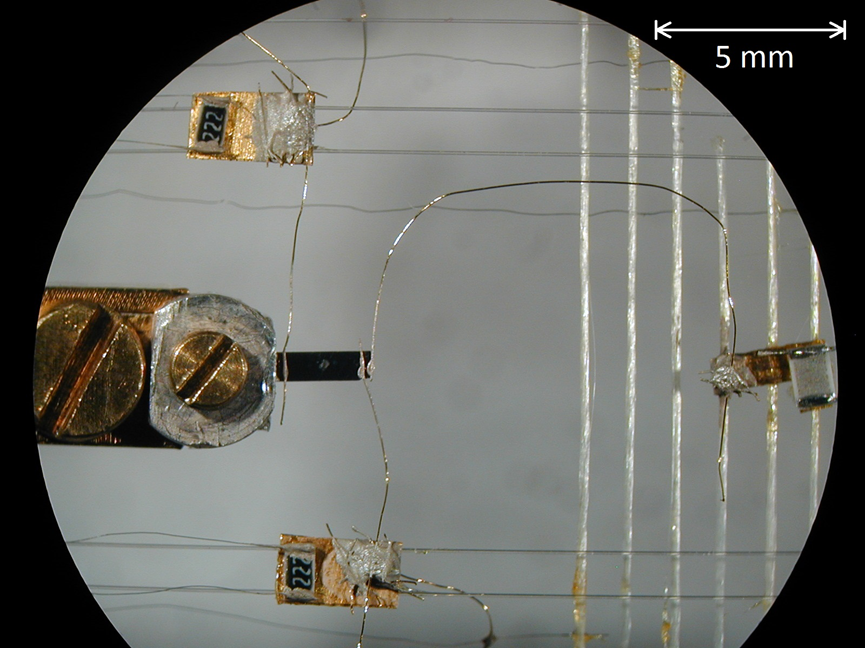

Figure 3: The setup used for thermal conductivity measurements in which high resolution thermometers and a heat source are thermally anchored to a single crystal sample.  One end of the sample is tightly coupled to an external heat bath, from which the thermometers and heater are simultaneously decoupled. Zoom Image
Figure 3: The setup used for thermal conductivity measurements in which high resolution thermometers and a heat source are thermally anchored to a single crystal sample.  One end of the sample is tightly coupled to an external heat bath, from which the thermometers and heater are simultaneously decoupled. [less]

loading content
