Hour-glass magnetic excitations

Header image 1448571483

Hour-glass magnetic excitations



A. C. Komarek, Z. W. Li, Y. Drees, H. Guo, L. H. Tjeng

Hour-glass magnetic excitation spectra are the unifying property of high-temperature superconducting (HTSC) cuprates. Recently, these kind of spectra were for the first time also observed in a non-copper containing material, i.e. an isostructural cobaltate. We were able to identify nano phase separation as the origin of these magnetic excitation spetcra in cobaltates and to rule out one of the most commonly believed responsible scenarios – charge stripe ordering.

Charge stripes are widely believed to play an important role for the physics of high-temperature superconducting (HTSC) cuprates. However, these vertical/horizontal charge stripes were known for a long time only for certain copper oxides with a corrugated low-temperature tetragonal (LTT) structure in a small range of hole-concentration around 1/8-doping, i.e. in La2−xBaxCuO4 and La2−x−yNdySrxCuO4 with x ∼ 1/8 [1]. Initially, in the prototypical cuprate material La2−xSrxCuO4 (LSCO) charge stripes have not been observed; even not around 1/8-doping. However, we were able to detect these long-sought charge stripe phases for the first time in LSCO within a combined resonant and hard X-ray diffraction study [2]. Aftewards, charge stripes or charge density waves (CDW) were found in many other copper oxide materials without LTT structure (for compositions with hole-concentrations around 1/8-doping). This shows that cuprates are susceptible to charge stripe / CDW instabilities in this certain range of hole-doping but does not yet give any conclusive evidence for the relevance of fluctuating charge stripes for the superconducting pairing mechanism. (Note, that static charge stripes tend to suppress superconductivity.) Surprisingly, an hour-glass magnetic spectrum has been recently observed in the cobalt oxide material La5/3Sr1/3CoO4 [3] which is isostructural to these HTSC cuprates. Since the magnetic peak positions were found at the same positions in reciprocal space like the ones in the isostructural nickelates with well-known robust diagonal charge stripe order, also in these cobalt oxides the presence of charge stripes was assumed. Hence, it was conjectured that this ”system has stripe correlations and is an insulator, which means that its magnetic dynamics can conclusively be ascribed to stripes. The results provide compelling evidence that the hour-glass spectrum in the copper oxide superconductors arises from fluctuating stripes.” [3]. In a very recent study on La1.6Sr0.4CoO4 we found no indications for charge stripes neither in diffraction measurements nor in the Co-O bond-stretching phonon dispersion [4]. However, we were also able to observe hour-glass shaped magnetic excitations in this cobaltate. Hence, we could show that besides Fermi surface effects also charge stripes are not needed for the emergence of hour-glass spectra [4]. In a subsequent study we re-analyzed La5/3Sr1/3CoO4. Also in this material we were able to exclude any significant role of charge stripes and unraveled a new nano-phase separation scenario for the emergence of hour-glass spectra in these cobaltates [5,6]. One conclusion from our new model is, that the hour-glass spectrum consists of excitations with distinct origin on the nanometer scale, see Fig. 1.

Fig. 1: Left: Our microdiffraction measurements reveal nano phase separation of charge ordered regions in layered cobaltates.

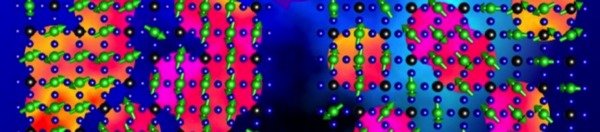

Middle: A graphical presentation of our novel electronic and magnetic nano phase separation model. High-energy magnetic excitations can be only hosted in the undoped islands (red areas) with large exchange interactions J whereas the electron spins in the checkerboard charge ordered regions (blue areas) are not able to follow the high-energy excitations since they are coupled with much smaller J’ << J.
Right: Our neutron measurements reveal an hour-glass shaped magnetic excitation spectrum with an additional magnetic high-energy mode that could be expected from our new nano phase separation model but that has never been observed before in any hour-glass spectrum. Zoom Image
Fig. 1: Left: Our microdiffraction measurements reveal nano phase separation of charge ordered regions in layered cobaltates.
Middle: A graphical presentation of our novel electronic and magnetic nano phase separation model. High-energy magnetic excitations can be only hosted in the undoped islands (red areas) with large exchange interactions J whereas the electron spins in the checkerboard charge ordered regions (blue areas) are not able to follow the high-energy excitations since they are coupled with much smaller J’ << J.
Right: Our neutron measurements reveal an hour-glass shaped magnetic excitation spectrum with an additional magnetic high-energy mode that could be expected from our new nano phase separation model but that has never been observed before in any hour-glass spectrum.
[less]

Whereas the low-energy regime is dominated by excitations within nanometer-sized hole-doped regions, at higher energies only the nanoscopic undoped regions can be excited since J is much higher in these regions. Our results show that nano phase separation plays an important role for the emergence of hour-glass spectra which can no longer be adequately described as a magnetic excitation spectrum arising from one single phase in the cobaltates. Hence, our findings in the isostructural cobaltates shed a new light also on the hour-glass spectra in HTSC cuprates, which were found to be the unifying property of these intriguing materials.







References

[1]   J. M. Tranquada et al., Nature 375, 561 (1995), doi:10.1038/375561a0.

[2]   H.-H. Wu et al., Nature Commun. 3, 1023 (2012),doi:10.1038/ncomms2019.

[3]   A. T. Boothroyd et al., Nature 471, 341 (2011),doi:10.1038/nature09902.

[4]   Y. Drees et al., Nature Commun. 4, 2449 (2013),doi:10.1038/ncomms3449.

[5]   Y. Drees et al., Nature Commun. 5, 5731 (2014),doi:10.1038/ncomms6731.

[6]   H. Guo et al., Phys. Status Solidi RRL 9, 580-582 (2015)
