Germanides and Silicides


Another complex is the advanced investigation of superconducting Pt-Ge compounds with filled skutterudite structure and with the general formula MPt4Ge12 (M = Sr, Ba, La, Pr). While the basic superconducting parameters are well known, the superconducting order parameters are still under debate for the most prominent members LaPt4Ge12 and PrPt4Ge12. (cf. Scientific Report MPI-CPFS 2009-2010, p.59-62). For the high-quality single crystals of the Pr compound (synthesized by R. Gumeniuk) high-resolution data of the penetration depth (obtained in co-operation with the MPI partner group at Zhejiang University, China) as well as specific heat data can be consistently described by a multi-gap model [10].


The superconducting properties of several new metastable silicide and germanide phases – CaGe3, CaSi3, YSi3 and LuSi3 – which were obtained by high-pressure high-temperatures syntheses, were investigated [11,12]. Also, the superconducting parameters of the new cage compound Ba3Ge13Ir4 and of isostructural Ba3Ge13Rh4 were determined [13]. For the type-I clathrate compound Ba8-xSi46 the major attention was on the preparation of samples with enhanced thermoelectric properties. However, also the superconducting properties (cf. Fig. 2 for the specific heat anomaly) could be improved and were re-investigated [14].

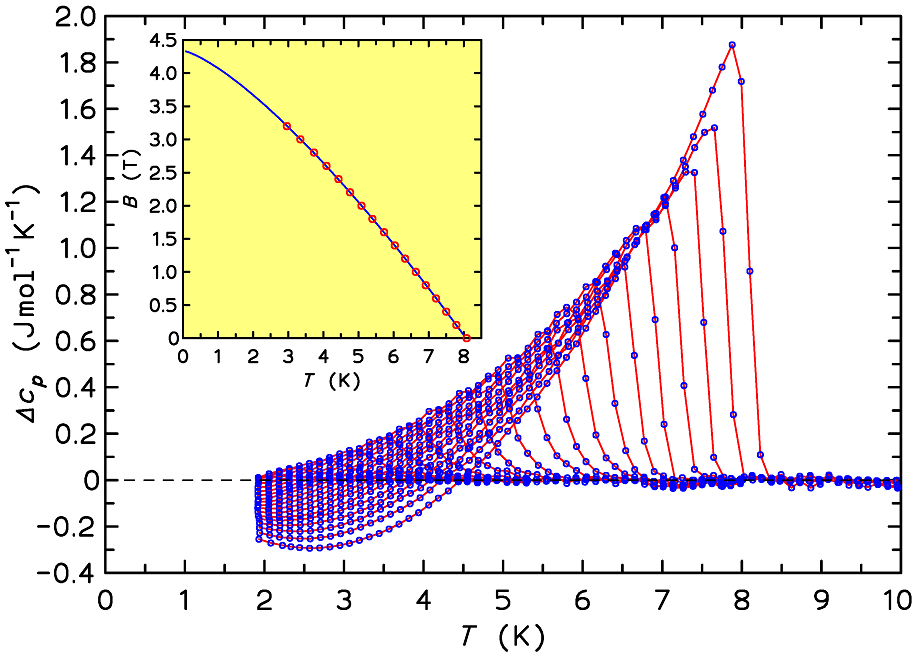

Fig. 1: Specific heat anomaly of the type-II superconducting clathrate Ba8-xSi46 in various magnetic fields. The inset shows the upper critical field Bc2(T) determined from the midpoint temperatures of the transition steps in the measured magnetic fields.
Go to Editor View
